Tubular Gel OPzV series for Solar
Leoch Tubular Gel batteries, OPzV series, are Gel Valve-Regulated Lead-Acid batteries using tubular plates that have been optimized for cyclic applications. Engineered for long-life cyclic applications such as Renewable / Solar Energy Stations, OPzV batteries are manufactured in a wide variety and offer up to 20-year life design with high cyclic abilities.
Compliance Statement
Leoch batteries are manufactured and designed in full compliance with international laws and regulations. Leoch batteries are fully compliant with 2023/1542/EC directive and bear the CE mark as described within the regulation. Additionally, Leoch batteries are fully compliant with international IEC standards applicable in cases and bear the necessary UL® certification. For any further information you might require, please do not hesitate to contact your nearest Leoch office or distributor directly.
- Downloads
- Telecom LPF series sheet
- Wide range including 2V cells, 12V top terminal and unique 12V front terminal blocks
- Design life of up to 20 years
- Complete maintenance free design throughout the battery’s life (in accordance to the provided product and user’s manual)

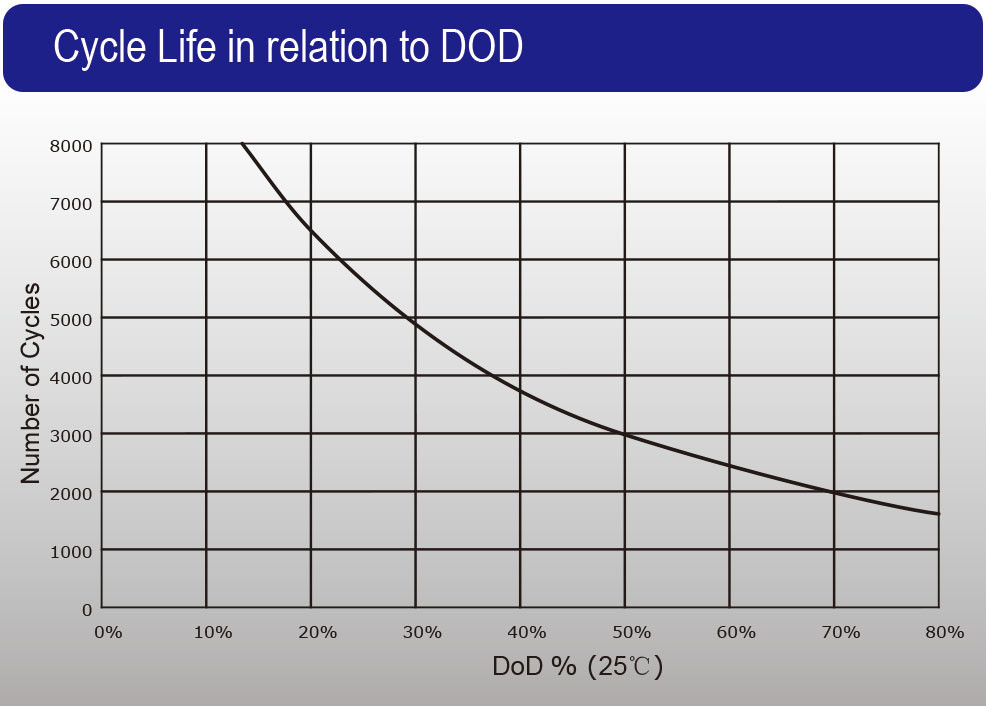

- For cyclic applications offering up to 2500 cycles at 60% DoD (2V) or up to 2000 cycles at 60% DoD (12V)
- Unique anti-explosion one-way vent valve design to minimize water loss and increase safety
- ABS case UL94-HB (UL94-V0 Optional) is used for increased container strength
Model | Nominal Voltage (V) | Rated Capacity 100Hr @ 1.80V/cell (AH) | Rated Capacity 10Hr @ 1.80V/cell (AH) | Approx. Dimensions | Approx. Weight | Terminal Type | ||||||||
L | W | H | TH | |||||||||||
mm | in. | mm | in. | mm | in. | mm | in. | kg | lbs | |||||
4OPzV200 | 2 | 260 | 200 | 103.00 | 4.06 | 206.00 | 8.11 | 355.00 | 13.98 | 390.00 | 15.35 | 18.80 | 41.50 | T7-A(M8) |
5OPzV250 | 2 | 325 | 250 | 124.00 | 4.88 | 206.00 | 8.11 | 355.00 | 13.98 | 390.00 | 15.35 | 22.40 | 49.40 | T7-A(M8) |
6OPzV300 | 2 | 390 | 300 | 145.00 | 5.71 | 206.00 | 8.11 | 355.00 | 13.98 | 390.00 | 15.35 | 26.40 | 58.20 | T7-A(M8) |
5OPzV350 | 2 | 455 | 350 | 124.00 | 4.88 | 206.00 | 8.11 | 471.00 | 18.54 | 506.00 | 19.92 | 29.00 | 63.90 | T7-A(M8) |
6OPzV420 | 2 | 546 | 420 | 145.00 | 5.71 | 206.00 | 8.11 | 471.00 | 18.54 | 506.00 | 19.92 | 34.50 | 76.10 | T7-A(M8) |
7OPzV490 | 2 | 637 | 490 | 166.00 | 6.54 | 206.00 | 8.11 | 471.00 | 18.54 | 506.00 | 19.92 | 39.00 | 86.00 | T7-A(M8) |
6OPzV600 | 2 | 780 | 600 | 145.00 | 5.71 | 206.00 | 8.11 | 646.00 | 25.43 | 681.00 | 26.81 | 48.00 | 105.80 | T7-A(M8) |
8OPzV800 | 2 | 1040 | 800 | 191.00 | 7.52 | 210.00 | 8.27 | 646.00 | 25.43 | 681.00 | 26.81 | 65.10 | 143.50 | T7-A(M8) |
10OPzV1000 | 2 | 1300 | 1000 | 233.00 | 9.17 | 210.00 | 8.27 | 646.00 | 25.43 | 681.00 | 26.81 | 78.50 | 173.10 | T7-A(M8) |
12OPzV1200 | 2 | 1560 | 1200 | 275.00 | 10.83 | 210.00 | 8.27 | 646.00 | 25.43 | 681.00 | 26.81 | 93.00 | 205.10 | T7-A(M8) |
12OPzV1500 | 2 | 1950 | 1500 | 275.00 | 10.83 | 210.00 | 8.27 | 796.00 | 31.34 | 831.00 | 32.72 | 115.00 | 253.60 | T7-A(M8) |
16OPzV2000 | 2 | 2600 | 2000 | 399.00 | 15.71 | 214.00 | 8.27 | 772.00 | 30.39 | 807.00 | 31.77 | 155.00 | 341.80 | T7-A(M8) |
20OPzV2500 | 2 | 3250 | 2500 | 487.00 | 19.17 | 212.00 | 8.35 | 772.00 | 30.39 | 807.00 | 31.77 | 196.00 | 432.20 | T7-A(M8) |
24OPzV3000 | 2 | 3900 | 3000 | 576.00 | 22.68 | 212.00 | 8.35 | 772.00 | 30.39 | 807.00 | 31.77 | 232.00 | 511.60 | T7-A(M8) |
