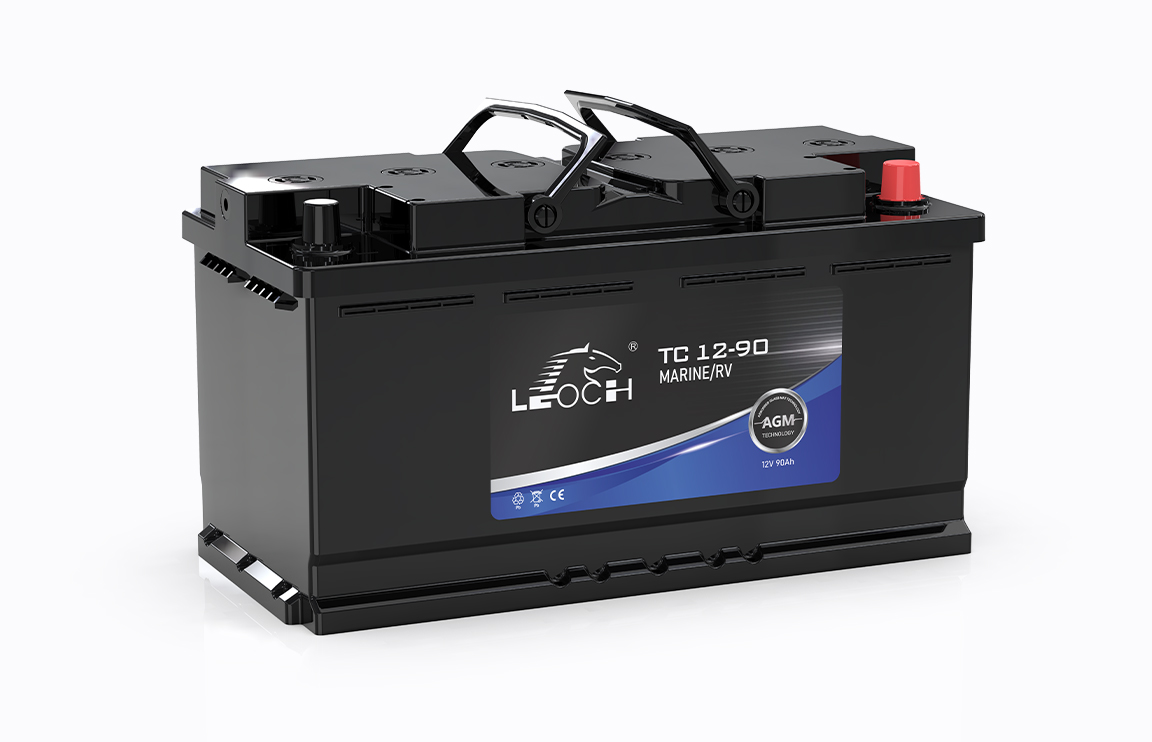

AGM Gel TC series
Leoch AGM Gel TC series battery offer stable power supply for applications such as Marine and RV.
CE Marking Statement
Leoch batteries do not bear the CE mark. The “CE” mark indicates the conformity of a product with an EC Directive applicable to that product and is a declaration that the product conforms to all EC regulations and provisions, and that the appropriate conformity assessment procedures have been completed. Batteries are covered by a different directive (Battery Directive 2006/66/EC) and as such the CE mark is not required on any Leoch lead acid battery. Leoch batteries do conform with all the relevant EC directives and regulations and as such are marked with the appropriate symbols but not bear CE marking which is inappropriate to be marked on lead-acid batteries.
AGM Gel TC series
Leoch AGM Gel TC series battery offer stable power supply for applications such as Marine and RV.
CE Marking Statement
Leoch batteries do not bear the CE mark. The “CE” mark indicates the conformity of a product with an EC Directive applicable to that product and is a declaration that the product conforms to all EC regulations and provisions, and that the appropriate conformity assessment procedures have been completed. Batteries are covered by a different directive (Battery Directive 2006/66/EC) and as such the CE mark is not required on any Leoch lead acid battery. Leoch batteries do conform with all the relevant EC directives and regulations and as such are marked with the appropriate symbols but not bear CE marking which is inappropriate to be marked on lead-acid batteries.

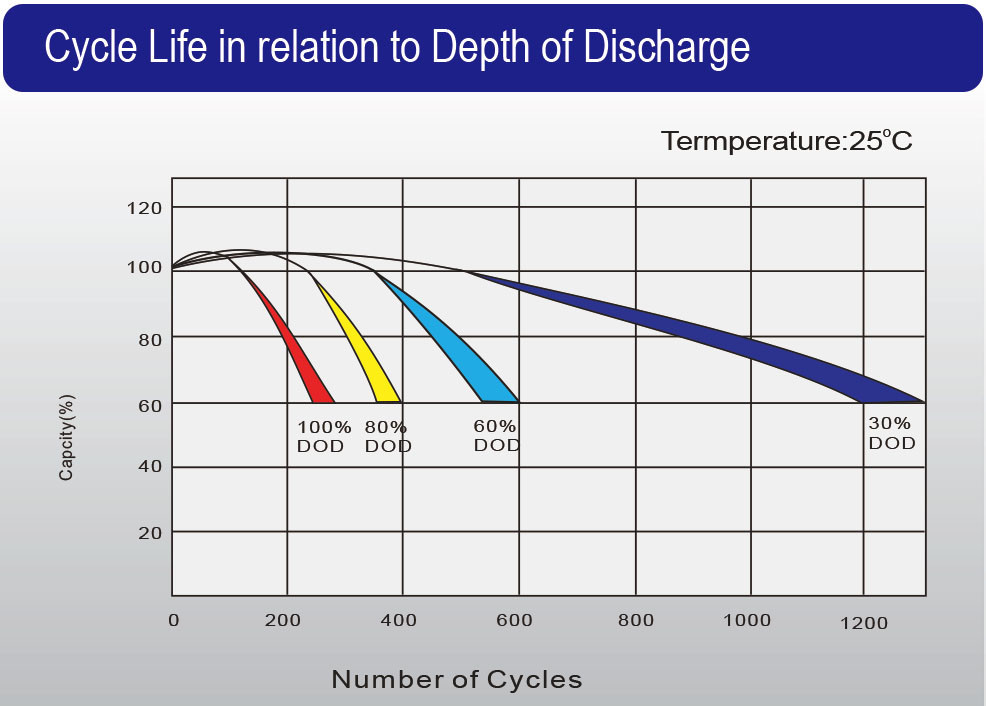

Excellent discharge resilience performance offering 550 cycles at 60% DoD
Lead calcium high tin alloy is used to improve the corrosion resistance of grid
Advanced formula, high charging acceptance and strong anti sulfurization ability
The unique design of grid makes the combination of active material and grid better, which improves the charging acceptance of battery
High temperature curing process is adopted to strengthen the combination ability of lead paste and grid, and improve the charging acceptance of battery by 35%
Advanced colloidal electrolyte formula to avoid stratification of sulfuric acid
| Model | Nominal Voltage (V) | Rated Capacity 20Hr @ 1.8V/cell (AH) | Approx. Dimensions | Approx. Weight | Terminal Type | ||||||||
| L | W | H | TH | ||||||||||
| mm | in | mm | in | mm | in | mm | in | kg | lbs | ||||
| TC12-90 | 12 | 90 | 353 | 13.9 | 175 | 6.9 | 168 | 6.6 | 190 | 7.5 | 26.2 | 57.8 | DIN/EN POST |
| TC12-105 | 12 | 105 | 306 | 12 | 168 | 6.6 | 208 | 8.2 | 214 | 8.4 | 29.3 | 64.6 | T6 |
| TC12-120 | 12 | 120 | 330 | 13 | 173 | 6.8 | 212 | 8.3 | 220 | 8.7 | 34.2 | 75.4 | T11 |
