Flooded Flat Plated DT Series

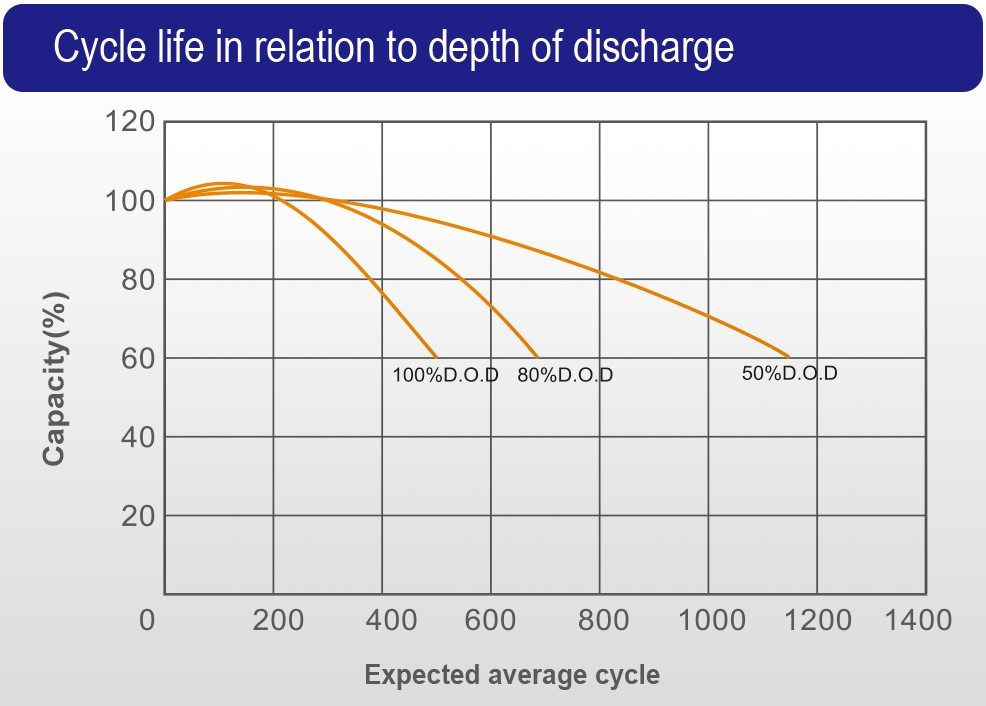

Leoch Flooded Deep Cycle batteries, DT series, are flooded Lead-Acid batteries that have been optimized for motive and general deep cycle applications, such as golf carts, electric vehicles, AWP and other. Engineered using enhanced SiO2-PVC Nano Grade separators and advanced TTP welding techniques, technology and flat plate design, they cover any requirement of motive and in general deep cycle applications and offer more than 700 cycles at 80% DoD.
CE Marking Statement
Leoch batteries do not bear the CE mark. The “CE” mark indicates the conformity of a product with an EC Directive applicable to that product and is a declaration that the product conforms to all EC regulations and provisions, and that the appropriate conformity assessment procedures have been completed. Batteries are covered by a different directive (Battery Directive 2006/66/EC) and as such the CE mark is not required on any Leoch lead acid battery. Leoch batteries do conform with all the relevant EC directives and regulations and as such are marked with the appropriate symbols but not bear CE marking which is inappropriate to be marked on lead-acid batteries.
Flooded Flat Plated DT Series
Leoch Flooded Deep Cycle batteries, DT series, are flooded Lead-Acid batteries that have been optimized for motive and general deep cycle applications, such as golf carts, electric vehicles, AWP and other. Engineered using enhanced SiO2-PVC Nano Grade separators and advanced TTP welding techniques, technology and flat plate design, they cover any requirement of motive and in general deep cycle applications and offer more than 700 cycles at 80% DoD.
CE Marking Statement
Leoch batteries do not bear the CE mark. The “CE” mark indicates the conformity of a product with an EC Directive applicable to that product and is a declaration that the product conforms to all EC regulations and provisions, and that the appropriate conformity assessment procedures have been completed. Batteries are covered by a different directive (Battery Directive 2006/66/EC) and as such the CE mark is not required on any Leoch lead acid battery. Leoch batteries do conform with all the relevant EC directives and regulations and as such are marked with the appropriate symbols but not bear CE marking which is inappropriate to be marked on lead-acid batteries.
Designed and optimized for cyclic intensive and PSoC motive applications
Enhanced SiO2-PVC Nano Grade separators and advanced TTP welding technology for maximum performance and durability
Proprietary design refilling plugs with special construction, minimizing water loss
High vibration resistance PP casing
Special pasting formula ensures long service life
Refilling plugs with special construction for reduced water loss over usage time
| Model | Nominal Voltage (V) | Rated Capacity (AH) | Reserve Capacity (min) | Approx. Dimensions | Approx. Weight | Terminal Type | ||||||||||||
| L | W | H | TH | |||||||||||||||
| 20hr | 5hr | 3hr | @25Amps | @56Amps | @75Amps | mm | in | mm | in | mm | in | mm | in | kg | lbs | |||
| DT606 | 6 | 210 | 175 | 140 | 380 | - | 105 | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 24.20 | 53.40 | DT-M8 (A) |
| DT106 | 6 | 225 | 185 | 155 | 445 | - | 115 | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 27.50 | 60.60 | DT-M8 (A) |
| DT126 | 6 | 240 | 195 | 160 | 485 | - | 130 | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 27.60 | 60.80 | DT-M8 (A) |
| DT146 | 6 | 260 | 215 | 170 | 530 | - | 145 | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 28.20 | 62.20 | DT-M8 (A) |
| DT866 | 8 | 150 | 125 | 100 | 225 | 90 | - | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 23.70 | 52.20 | DT-M8 (A) |
| DT876 | 8 | 170 | 145 | 120 | 295 | 117 | - | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 26.60 | 58.60 | DT-M8 (A) |
| DT896 | 8 | 190 | 155 | 125 | 340 | 132 | - | 260.00 | 10.24 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 30.30 | 66.80 | DT-M8 (A) |
| DT1275 | 12 | 150 | 120 | 100 | 280 | 102 | - | 328.00 | 12.91 | 180.00 | 7.09 | 248.00 | 9.76 | 279.50 | 11.00 | 33.50 | 73.90 | DT-M8 (A) |
